Materials for Die-Casting

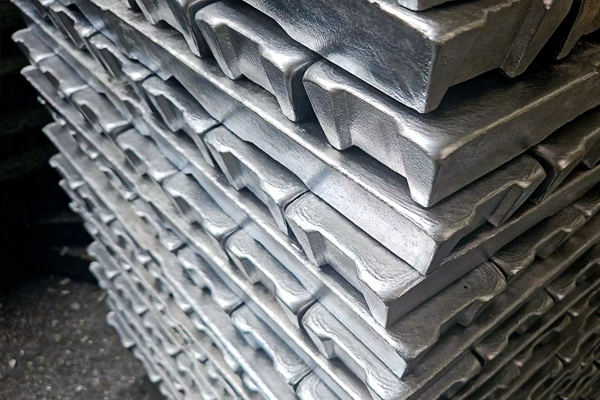

Die-casting is a manufacturing process that involves injecting molten metal under high pressure into a mold cavity. The selection of materials for die-casting is crucial to achieving the desired quality and precision of the finished products. The most common materials used in die-casting are metals that possess good fluidity, strength, and the ability to withstand high temperatures.
Alluminum Alloy - Composition
| % | Aluminum | Cu | Si | Mg | Zn | Fe | Mn | Ni | Sn |
| A413 (ADC 1) | Balance | <1.0 |
11.0-13.0 |
<0.3 | <0.5 | <1.3 | <0.3 | <0.5 | <0.1 |
| A360 (ADC 3) |
Balance |
<0.6 |
9.0-10.0 |
0.4-0.8 |
<0.5 |
<1.3 |
<0.3 |
<0.5 |
<0.1 |
| 518 (ADC 5) |
Balance |
<0.2 |
<0.3 |
4.0-8.5 |
<0.1 |
<1.8 |
<0.3 |
<0.1 |
<0.1 |
| 514 ADC 6 |
Balance |
<0.1 |
<1.0 |
2.5-4.0 |
<0.4 |
<0.8 |
0.4-0.6 | <0.1 |
<0.1 |
| A380 (ADC 10) |
Balance |
2.0-4.0 |
7.5-9.5 |
<0.3 |
<1.0 |
<1.3 |
<0.5 |
<0.5 |
<0.3 |
| A383 (ADC 12) |
Balance |
1.5-3.5 |
9.6-12.0 |
<0.3 |
<1.0 |
<1.3 |
<0.55 |
<0.5 |
<0.33 |
| A356 (LM25) |
Balance |
<0.2 |
6.5-7.5 |
0.25-0.45 |
<0.1 |
<0.1 |
<0.11 |
- | - |
| 6061 | Balance |
0.15-0.40 |
0.40-0.80 |
0.8-1.20 |
<0.25 |
<0.15 |
<0.15 |
<0.5 |
<0.05 |
| *Extruded material |
|
|
|
|
|
|
|
|
|
Alluminum Alloy - Physical Properties
| Alloy Model |
Density | Melting Point | Tensile Strength | Yield Strength | Elongation | Brinell Hardness | Electrical Conductivit |
| - | g/cm3 |
。C | kg/mm2 | kg/mm2 | % | 10/500 | %IACS |
|
A413 (ADC 1) |
2.66 | 580 | 29.5 | 13.3 | 3.5 | 80 | 31 |
| A360 (ADC 3) |
2.68 | 600 | 32.2 | 16.8 | 3.5 | 75 | 29 |
| 518 (ADC 5) |
2.53 | 620 | 31.5 | 19.6 | 5 | 80 | 24 |
| 514 ADC 6 |
2.68 | 630 | 29 | 15.5 | 7.5 | 50 |
|
| A380 (ADC 10) |
2.76 | 590 | 33 | 16.2 | 3.5 | 80 | 23 |
| A383 (ADC 12) |
2.7 | 580 | 33.6 | 16.8 | 2.5 | 85 | 23 |
| A356 (LM25) |
2.6 | 670-610 | 234 MPa |
165 MPa |
3.5 | 112 |
|
| 6061 | 2.7 | 650 | 260 MPa |
|
|
95 |
|
Zinc Alloy - Composition
| % | Zinc |
AI | Cu | Mn | Fe(max) |
Pb (max) |
Cd(max) |
Tin (max) |
| Zamak 2 |
Balance | 3.5-4.3 | 2.5-3.0 | 0.02-0.05 | 0.1 | 0.005 | 0.004 | 0.003 |
| Zamak 3 |
Balance |
3.5-4.3 |
0.25 |
0.02-0.05 |
0.1 | 0.005 |
0.004 |
0.003 |
| Zamak 5 |
Balance |
3.5-4.3 |
0.75-1.25 |
0.03-0.08 |
0.1 | 0.005 |
0.004 |
0.003 |
| Zamak 7 |
Balance |
3.5-4.3 |
0.25 |
0.005-0.02 |
0.075 | 0.003 |
0.002 |
0.001 |
Zinc Alloy - Physical Properties
| Alloy Model |
Density |
Melting Point |
Tensile Strength |
Yield Strength |
Elongation |
Brinell Hardness |
Thermal conductivity |
| - | g/cm3 |
。C | Mpa | Mpa | % | 10/500 | W/mK |
| Zamak 2 |
6.6 |
379-390 |
359 |
283 |
10 | 82 | 104 |
| Zamak 3 |
6.6 |
381-387 |
268 |
208 |
10 | 82 | 113 |
| Zamak 4 |
6.6 |
383 | 328 |
228 |
3.6 | 91 | 109 |
| Zamak 5 |
6.6 |
381-387 |
283 |
221 |
13 | 80 | 113 |
